Audio-Technica Turntable Headshell/Cartridge Combo Kit, Gray

More Views

$109.00

Availability: In stock

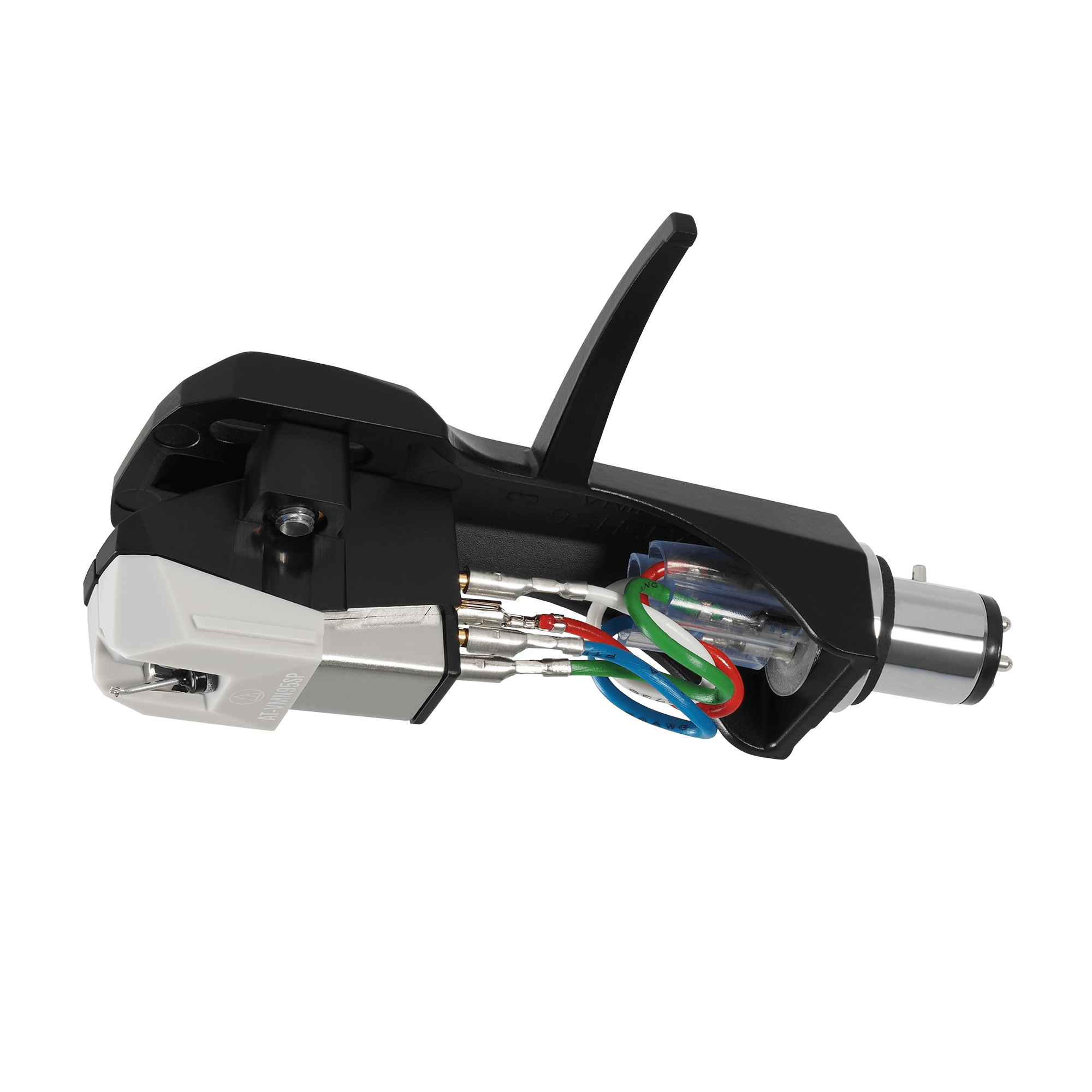

The AT-VM95SP/H combo kit includes the AT-VM95SP dual moving magnet cartridge premounted on the AT-HS6BK headshell.

Qty:

Description

The AT-VM95SP/H combo kit includes the AT-VM95SP dual moving magnet cartridge premounted on the AT-HS6BK headshell.

M dual Magnet cartridge with 3.0 mil Conical stylus
Aluminum cantilever
Specially wound coils increase output voltage
Threaded inserts in cartridge body enable cartridge to be mounted to head shell with just two screws - no nuts required
Universal 1/2"-mount head shell for 4-pin Turntable cartridges

Brand	Audio-Technica
Manufacture SKU	AT-VM95SP/H
UPC	4961310146542
Frequency Response	20 - 20,000 Hz
Vertical Tracking Angle	23°
Vertical Tracking Force	4.5 to 5.5g (5.0g standard)
Stylus Construction	Bonded Round Shank
Recommended Load Impedance	47,000
Coil Impedance	3.3 k? (1 kHz)
DC Resistance	485
Coil Inductance	550 mH (1 kHz)
Output Voltage	2.7 mV (@ 1 kHz, 5 cm/sec)
Output Channel Balance	1.5 dB (1 kHz)
Stylus Shape	SP 3 mil Conical Bonded
Cantilever	Aluminium Pipe
Static Compliance	12 x 10 6 cm / dyne
Dynamic Compliance	2 x 10 6 cm / dyne (100 Hz)
Mounting	1/2? centres
Dimensions	21.2 × 21.4 × 62.4 ( H x W x D mm)
Recommended Load Capacitance	100-200 pF
Replacement Stylus	AT-VMN95SP
Stylus Size	3 mil
Type	VM Stereo Dual Magnet
Weight	15.5 g
Wire Used for Coil	T.P. Copper
