Ibanez 4-String 34-Inches Bass Guitar, Right Handed, Jewel Blue

NECK DIMENSIONS

• Scale: 864mm/34 Inch


• a: Width: 41mm at NUT


• b: Width: 62mm at 22F


• c: Thickness: 21mm at 1F


• d: Thickness: 22mm at 12F


• Radius: 305mmR

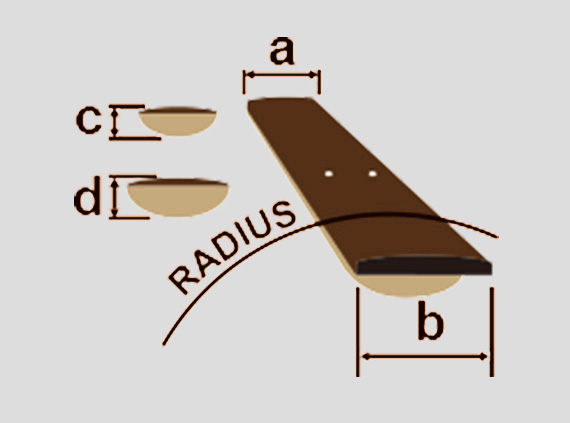

Guitar Neck Diagram

• a: Width of the neck at the nut


• b: Width of the neck at the fret position specified by the neck dimension


• c: Thickness of the neck at the first fret


• d: Thickness of the neck at the fret position specified by the neck dimension


• Radius: Radius of the fingerboard

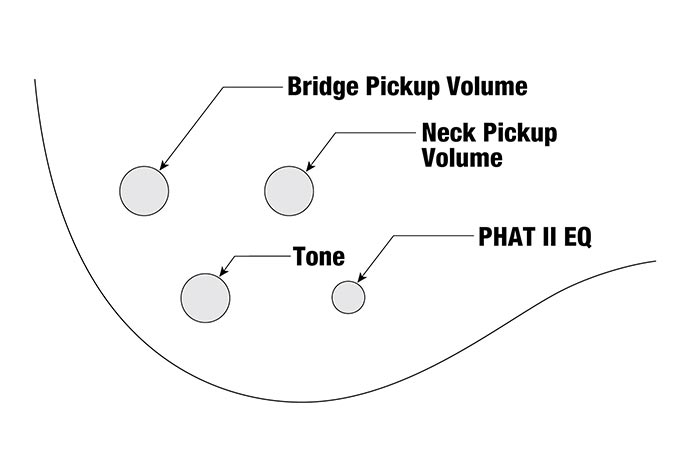

CONTROLS

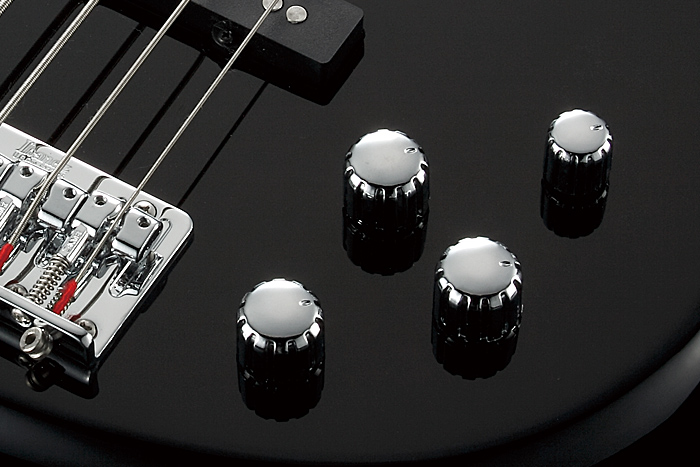

There are four knobs on this bass. The two knobs closest to the bridge are the volume knobs. The knob closest to the input jack is the tone knob, and the 4th knob, closest to the neck, is PHAT II EQ knob.

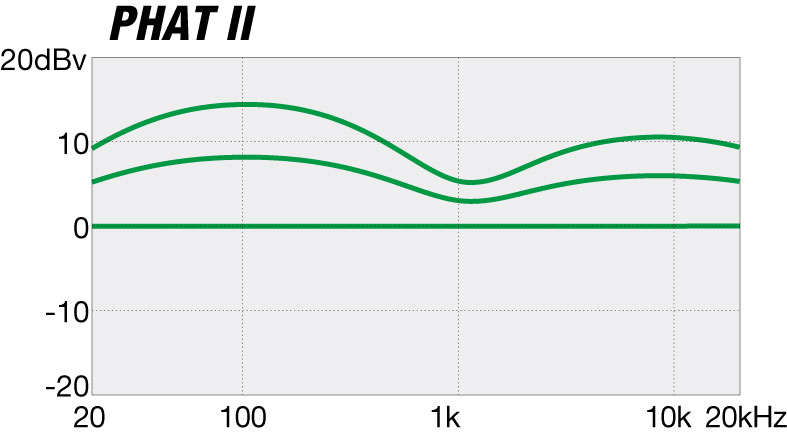

FREQUENCY RESPONSE

The variable range of the frequency increases from 20 Hz to the high range, and the variable range decreases from the peak around 100 Hz to around 1000 Hz. The variable width of the frequency becomes large again in the high range from around 1000 Hz, and reaches the peak at around 10,000 Hz, and then becomes smaller again. The variable range around 100 Hz is about 15 dB, the range around 1000 Hz is about 5 dB, and the range around 10000 Hz is about 10 dB.
