Ibanez 6-String Solid-Body Electric Guitar, Right Handed, White

NECK DIMENSIONS

• Scale :564mm/22.2 inch


• a :Width:41mm at NUT


• b :Width:56mm at 24F


• c :Thickness:19.5mm at 1F

• d :Thickness:21.5mm at 12F


• Radius : 400mm

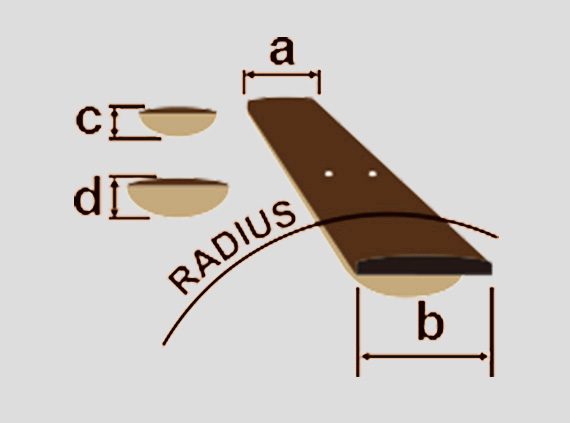

GUITAR NECK DIAGRAM

• a: Width of the neck at the nut


• b: Width of the neck at the fret position specified by the neck

• dimension


• c: Thickness of the neck at the first fret


• d: Thickness of the neck at the fret position specified by the neck

• dimension


• Radius: Radius of the fingerboard

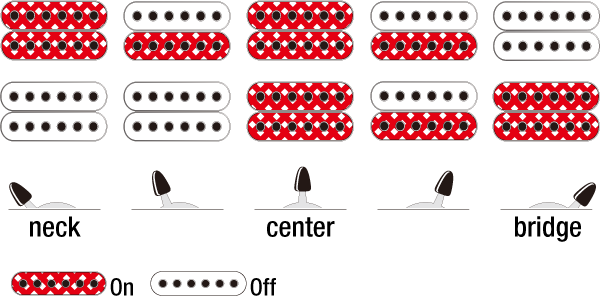

SWITCHING SYSTEM

When the pickup selector switch is in neck position, the neck pickup is selected. When the switch is in between neck and center position, bridge side of the neck pickup is selected. When the switch is in center position, both neck and bridge pickup s are selected. When the switch is in between center and bridge position, the bridge side of the neck pickup and the bridge side of the bridge pickup are selected. When the switch is in bridge position, bridge pickup is selected.

CONTROLS

With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the neck is the five-way pickup selector switch. Closer to the input jack is the tone knob. The volume knob is located right above the five-way pickup selector switch.

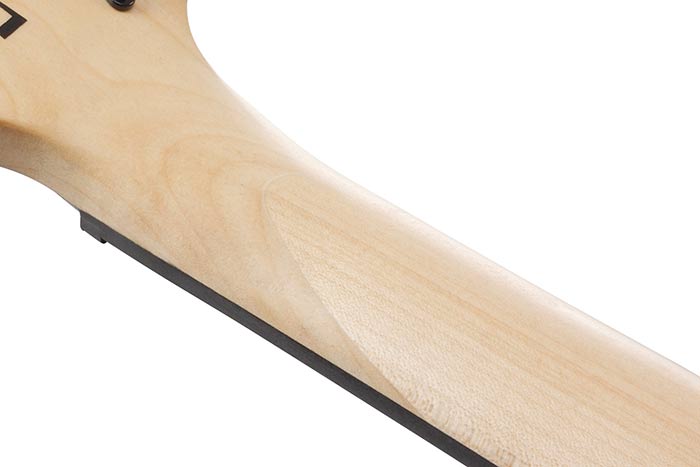

Maple neck: The Maple neck provides stability and bright tonal character.

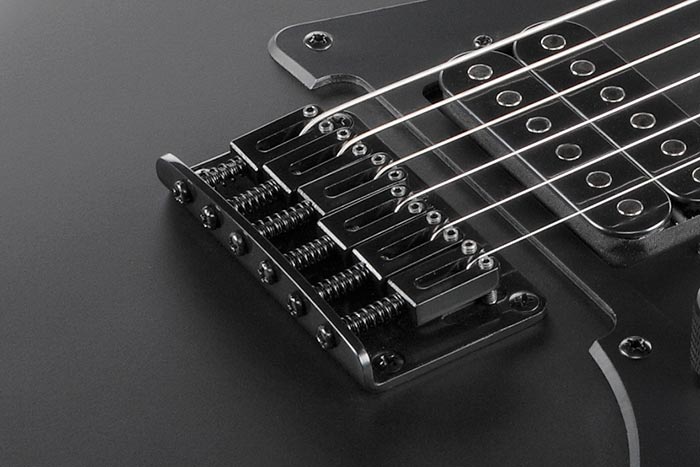

F106 bridge:The F106 bridge enriches sustain. String height adjustment can be done easily and independently.

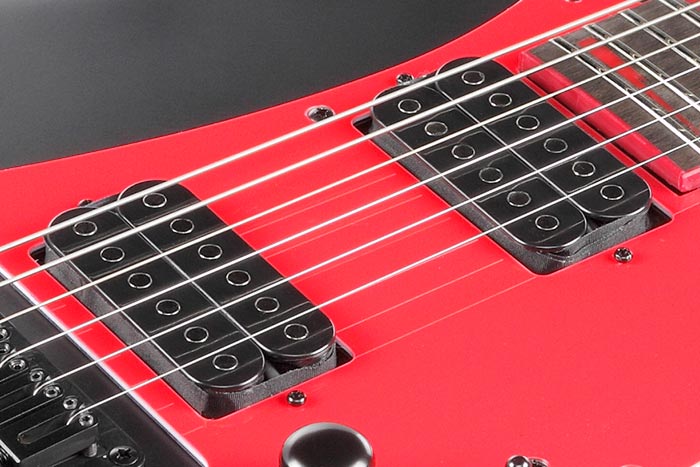

Infinity R H-H pickups :Ibanez Infinity pickups deliver an accurate and tight sound with excellent dynamics. Even under heavy settings, they do not lose tonal clarity.

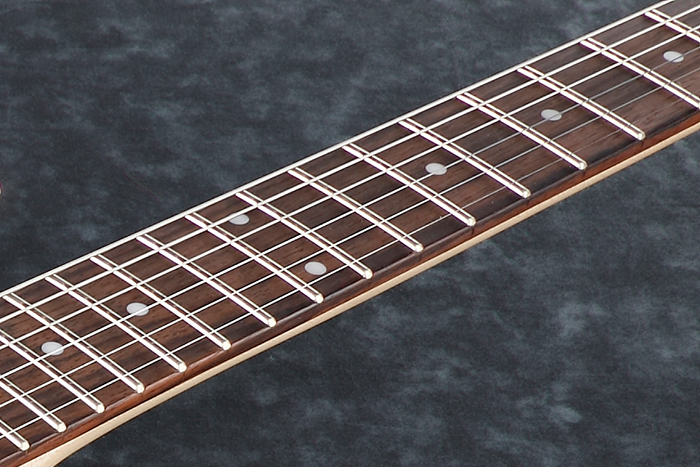

 Jatoba Fretboard:Jatoba has a reddish brown color which produces a rich mid range with a crisp high end
