- Description
-
Details
The Ibanez 6-String Solid-Body Electric Guitar is a high-quality instrument designed for right-handed players. It features a sleek and stylish white finish that adds a touch of elegance to its appearance. This electric guitar is built with a solid-body construction, which enhances its sustain and produces a rich tone. With six strings, it offers a versatile range of musical possibilities, suitable for various genres and playing styles. Whether you are a beginner or an experienced guitarist, the Ibanez 6-String Solid-Body Electric Guitar provides an excellent combination of aesthetics, playability, and sound quality.NECK DIMENSIONS
Scale :648mm/25.5 inch
a:Width: 42mm at NUT
b:Width: 57mm at 22F
c:Thickness: 19.5mm at 1F
d:Thickness: 21.5mm at 12F
Radius:305mmR

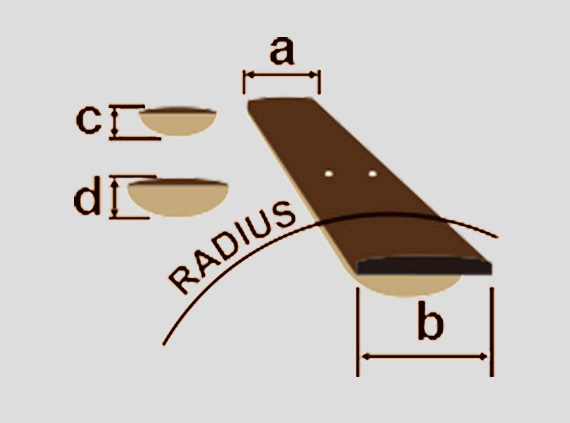

Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard

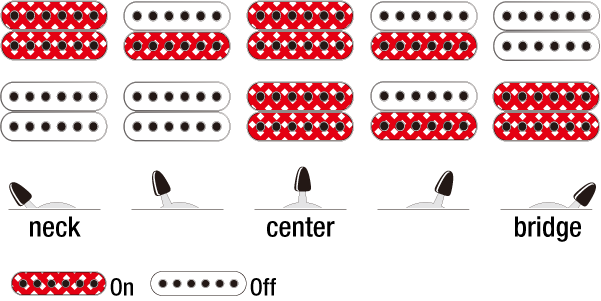

SWITCHING SYSTEM
When the pickup selector switch is in neck position, the neck pickup is selected. When the switch is in between neck and center position, bridge side of the neck pickup is selected. When the switch is in center position, both neck and bridge pickup s are selected. When the switch is in between center and bridge position, the bridge side of the neck pickup and the bridge side of the bridge pickup are selected. When the switch is in bridge position, bridge pickup is selected.CONTROLS

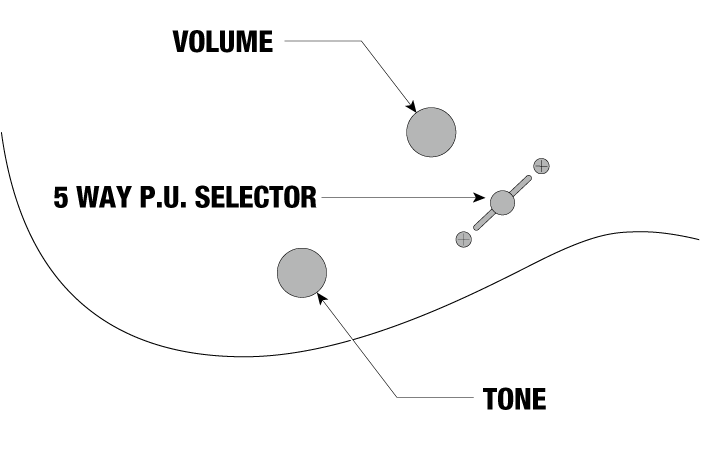

With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the neck is the five-way pickup selector switch. Closer to the input jack is the tone knob. The volume knob is located right above the five-way pickup selector switch.IBANEZ 6-STRING SOLID-BODY ELECTRIC GUITAR FEATURES

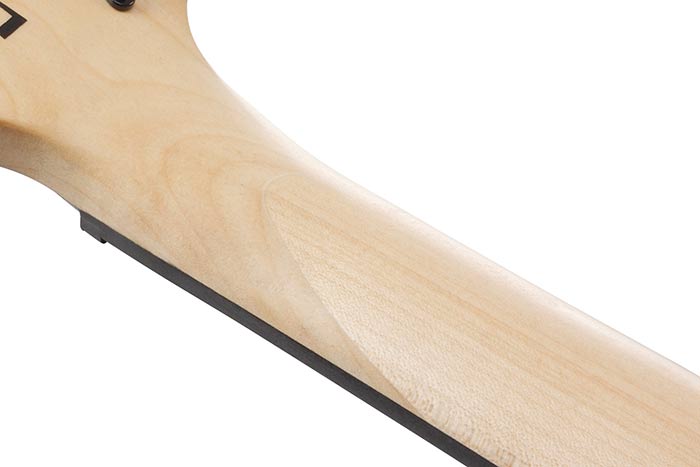

Maple neck: The Maple neck provides stability and bright tonal character

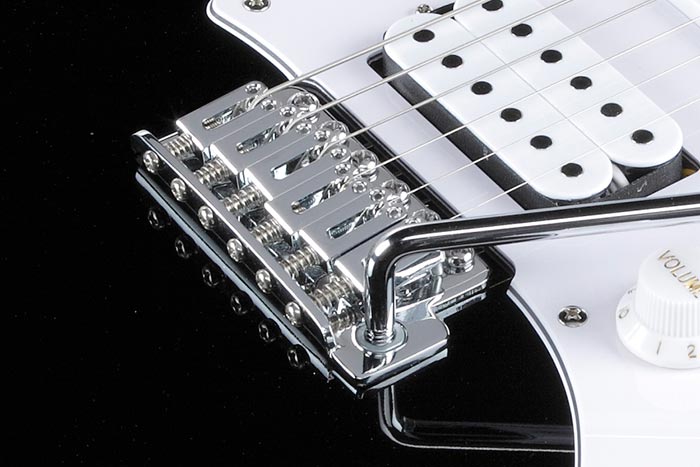

T106 tremolo bridge: The T106 tremolo bridge with 6 independent saddles makes precise height and intonation adjustment of each string easy

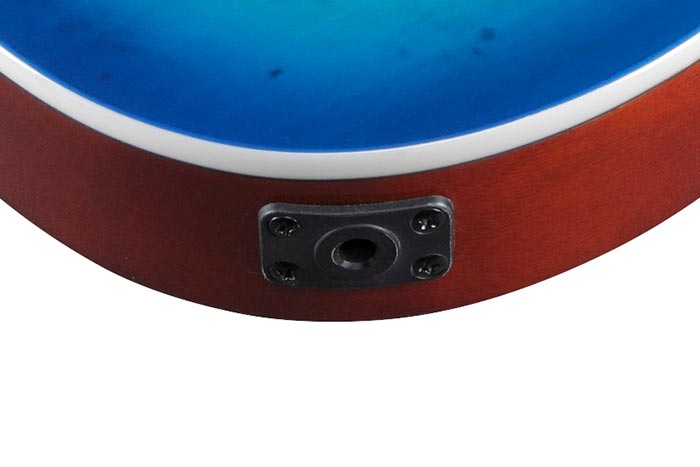

Mono-unit output jack: The mono-unit output jack is made of solid, durable material and is a single piece to avoid unwanted movement and loosening of the jack, which leads to contact failure or disconnection. This innovation allows for long term playing enjoyment and minimal maintenance.

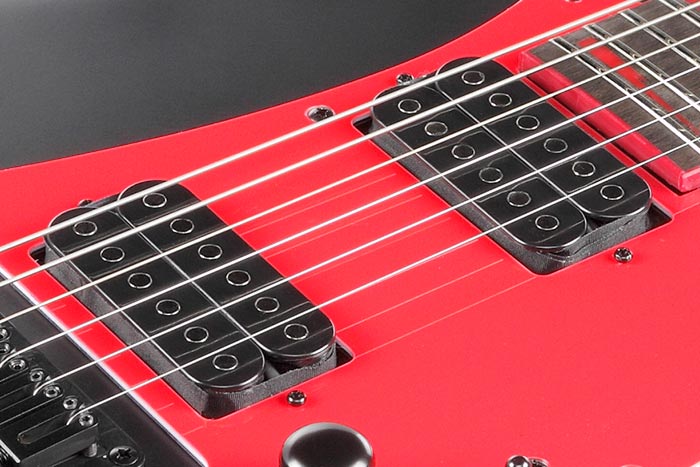

Infinity R H-H pickups:Ibanez Infinity pickups deliver an accurate and tight sound with excellent dynamics. Even under heavy settings, they do not lose tonal clarity.

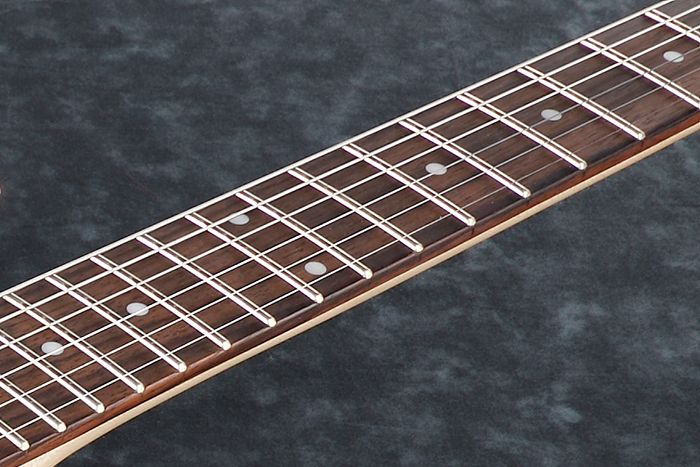

Jatoba Fretboard:Jatoba has a reddish brown color which produces a rich mid range with a crisp high end.
BOX INCLUDES
Ibanez 6-String Solid-Body Electric Guitar, Right, White
User Manual
IBANEZ 6-STRING SOLID-BODY ELECTRIC GUITAR SPECIFICATIONS
Neck Type: GRX / Maple Neck
Top/Back/Body: Poplar ody
Fretboard: Jatoba Fretboard / White Dot Inlay
Fret: Medium Frets
Number of frets: 22
Bridge:T106 Bridge
String space:10.5mm
Neck pickup: Infinity R (H) Neck Pickup (Passive/Ceramic)
Bridge pickup: Infinity R (H) Bridge Pickup (Passive/Ceramic)
Factory tuning:1E,2B,3G,4D,5A,6E
String sauge: .009/.011/.016/.024/.032/.042
Hardware color: Chrome
GENERAL INFORMATION
Brand: Ibanez
Manufacturer : GRX20WWH
UPC: 887802048979
Type: Electric Guitar
