Goal Zero 2.4-Kilowatt-Hour Yeti Tank Expansion Kit

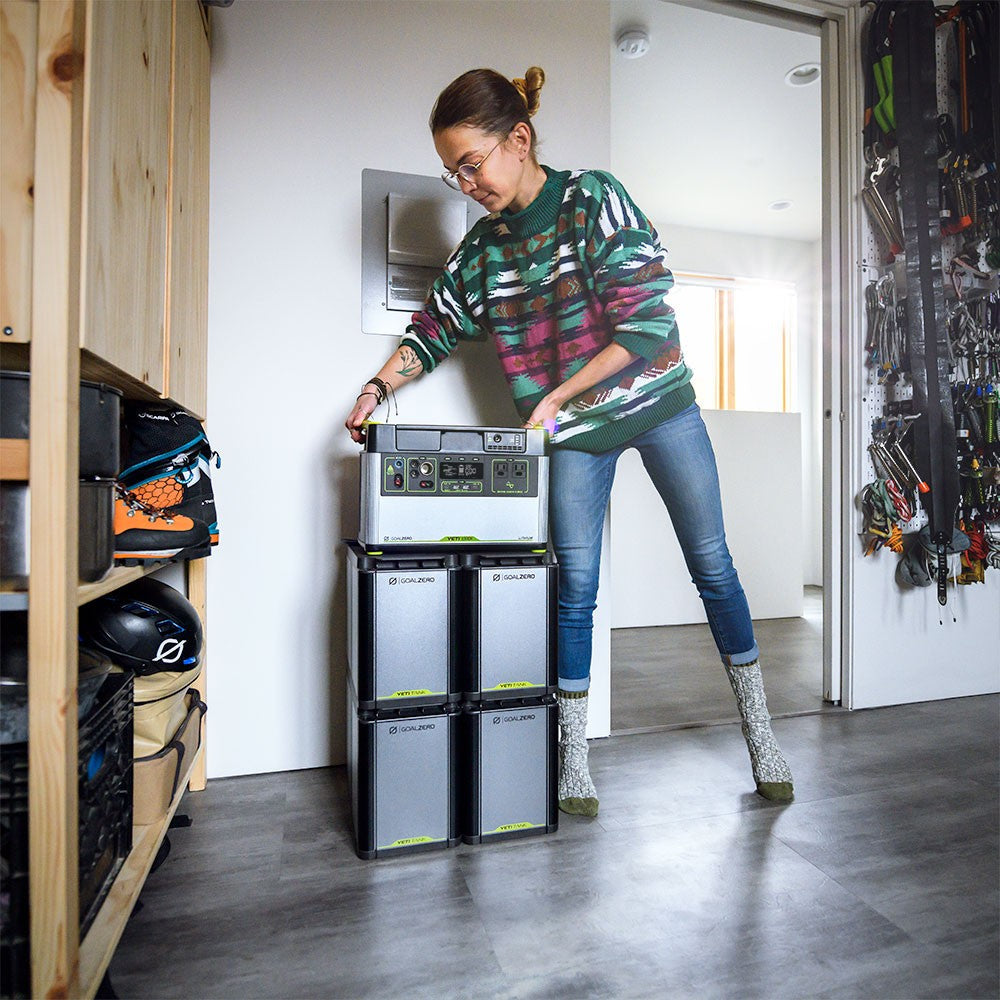

2400WH YETI EXPANSION SYSTEM HIGHLIGHTS Customizable, versatile energy storage system backs up four essential circuits in your home and scales to meet your specific power needs. Our industry-leading battery chaining technology allows you to connect cost-effective lead-acid batteries to our high-quality Yeti X and Yeti Lithium Power Stations to easily scale your energy storage capacity. Integrate directly with your home's circuits for a more seamless backup power experience using the Yeti Home Integration Kit . Power everything from lights in high-use rooms and fridges to medical devices, internet modems, and more.

GOAL ZERO 2.4-KILOWATT-HOUR YETI TANK EXPANSION KIT FEATURES

• Expansion kit designed for use with Goal Zero portable power stations, such as the Yeti 1000, 1400, and 3000 Lithium models.


• Adds an additional 2400 watt-hours (Wh) of capacity to your existing power station setup.


• Increases the total available power for extended runtime and more devices to be charged.


• Includes two 1200Wh Yeti Tank Expansion Batteries that can be connected in a chain to expand the storage capacity.


• Each battery has its own integrated AC inverter, allowing for independent operation or paralleling for increased power output.


• Built-in handles on each battery for easy carrying and transportation.


• Provides multiple power output options, including AC, USB, USB-C, and 12V ports, for versatile device charging.


• Compatible with solar panels, wall outlets, or car chargers for recharging.


• Allows for daisy-chaining with additional Yeti Tank Expansion Kits for even greater power capacity.


• Ideal for situations requiring prolonged power supply, such as camping trips, RV adventures, off-grid living, and emergency backup power.

BOX INCLUDES

• (2x) Yeti Tank Expansion Battery


• Yeti Link Expansion Module

GOAL ZERO 2.4-KILOWATT-HOUR YETI TANK EXPANSION KIT SPECIFICATIONS

Yeti Link Expansion Battery Specifications

GENERAL

• Dims: 15.5 x 7.5 x 10.5 in. (39.37 x 19.05 x 26.67 cm)


• Weight: 77.1 lbs (34.97 kg)


• Warranty: 12 Months

BATTERY DETAILS

• Lead Acid (AGM)


• 1200Wh (12V, 100Ah)

PORTS

• Expansion port male connector (input/output) 100A Max


• Expansion port female connector (input/output) 100A Max

CHARGE TIMES

• Wall Charger (120W): 11hrs per tank

Yeti Link Expansion Module Specifications

GENERAL

• Weight: 1.5 lbs (680 g)


• Dimensions: 10.25 x 3.3 x 1.5 in. (26 x 8.4 x 3.8 cm)


• Warranty 12 months


• YETI X 120W POWER SUPPLY


• Gauge: 16AWG


• Cable Length: 9 ft 4 in.


• Dimensions: 2.5 x 5.9 x 1.4 in. (6.5 x 15 x 3.5 cm)

PORTS

• Do not exceed 22V input


• 8mm Charging Port (input): 14 - 22V Do not exceed 150W (10A) per port


• External Battery Connector (output): 65A charge controller


• External Battery Connector (Input/Output): 10.7-15V. Do not exceed 15V


• YETI X 120W POWER SUPPLY


• Input: AC Wall Plug 100-240V - 50/60Hz 3.0A


• Output: 8.0mm 16V- 7.5A, 120W

CHARGE TIMES
Max Input from Yeti Tank to:

• Yeti 1000/1000X: 454-605W


• Yeti 1400/1500X: 454-750W


• Yeti 3000/3000X: 750W


• Yeti 6000X: 750W

General Information

• Brand: Goal Zero


• Manufracturer SKU: 44105


• UPC: 847974008324


• Type: Expansion Kit
