Goal Zero Boulder 200 Portable Solar Panel with 20 Amp Charge Controller

BOULDER 200 BRIEFCASE SOLAR CHARGING KIT Boulder 200 Solar Kit comes with a pre-installed 20A Charge Controller, integrated High Power Port for connecting to solar, Spade to SAE Cable, and SAE to Alligator Clips plus SAE to Ring Terminal options for connecting to 12V batteries. No additional cables or accessories required. To charge a Goal Zero Yeti Power Station with the Boulder 200 Solar Kit, you simply disconnect the High Power Port Cable on the solar panel from the High Power Port Cable on the Charge Controller and plug it into the High Power Port on the Yeti.
	BOULDER 200 BRIEFCASE HIGHLIGHTS 200 total Watts - two 100-Watt panels (14-21.8V) chained together and connected by a hinge. Built with strong tempered glass and an aluminum frame with added corner protection. Included is a protective canvas bag for easy transport and carrying.
TIPS & TRICKS FOR USING SOLAR PANELS The solar panel does not hold a charge - it produces power when it is exposed to sunlight. Place solar panels towards the sun at an angle. Connect High Power Power to Yeti Power Station. Adjust solar panel as the sun moves across the sky.
	GOAL ZERO ECOSYSTEM Customize your setup at home, outside, or in your vehicle with our Yeti Power Station Ecosystem. Designed to provide a diverse range of solutions for every power need, from portable power stations, solar generators, and expansion batteries. Power. Anything. Anywhere.

GOAL ZERO BOULDER 200 PORTABLE SOLAR PANEL WITH 20 AMP CHARGE CONTROLLER FEATURES

• Goal Zero Boulder 200 Portable Solar Panel


• 200-watt solar panel for portable power generation


• Designed for outdoor use, ideal for camping, RVs, and off-grid adventures


• Compatible with Goal Zero Yeti power stations and Sherpa power packs


• Features a sturdy, durable design with tempered glass and aluminum frame


• Weatherproof construction for reliable performance in various conditions


• Equipped with a built-in kickstand for easy positioning and optimal sun exposure

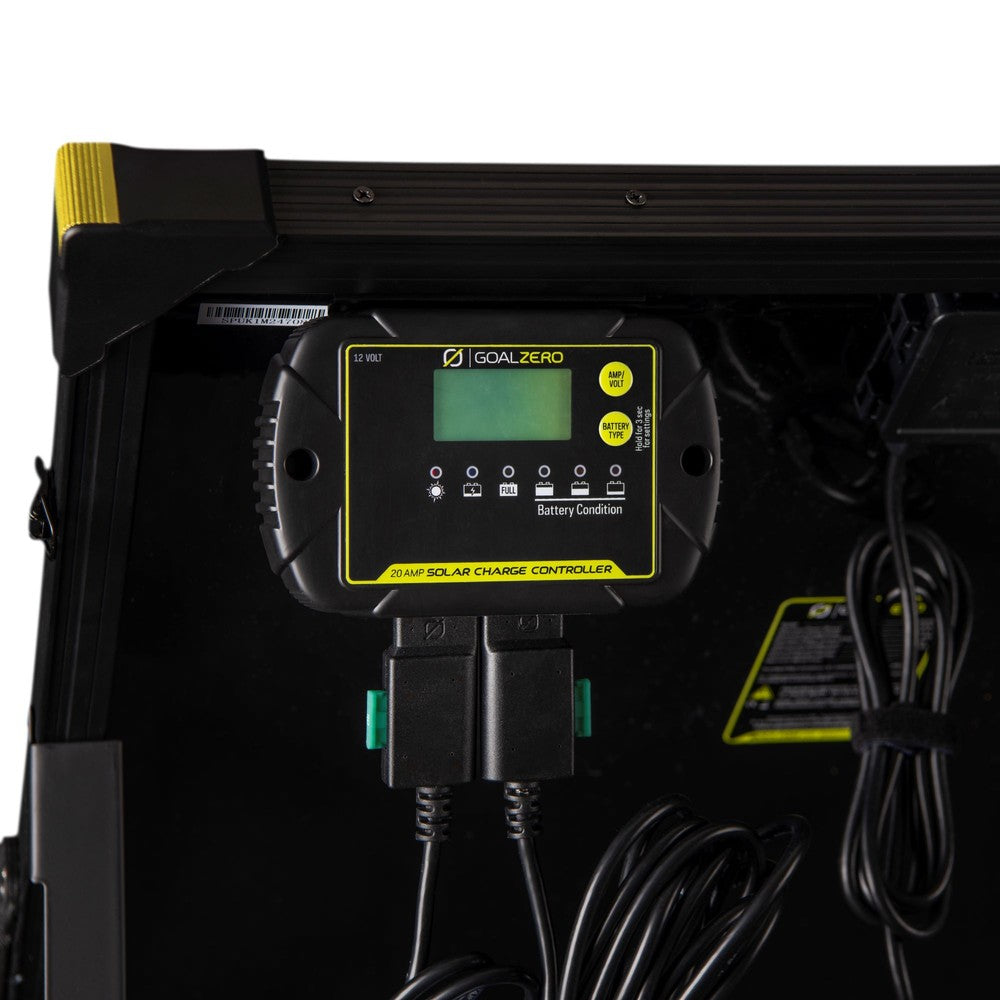

• Includes a 20 Amp Charge Controller for efficient charging and battery protection


• Provides a reliable source of renewable energy for charging devices and running small appliances


• Can be chained with other Boulder solar panels for increased power output


• Offers a portable and eco-friendly solution for off-grid power needs.

BOX INCLUDES

• Boulder 200 Briefcase with cord and built-in kickstand

• Canvas Carrying Bag

• 20 Amp Charge Controller


• Boulder Charge Controller Mounting Bracket


• Spade to HPP Cable


• Spade to SAE Cable


• SAE to Ring Terminal


• SAE to Alligator Clip

GOAL ZERO BOULDER 200 PORTABLE SOLAR PANEL WITH 20 AMP CHARGE CONTROLLER SPECIFICATIONS

GENERAL

• Weight: 44.45 lbs (20.16 kg)


• Dimensions (folded): 40 x 26.75 x 3.5 in (101.6 x 70 x 8.9 cm)


• Dimensions (unfolded): 40 x 53.5 x 1.75 in (101.6 x 140 x 4.4 cm)


• Cable Length: 6ft

• Spade to HPP: 3Ft


• Spade to SAE: 15Ft


• SAE to Ring: 23in


• SAE to Alligator: 29in

• Warranty: 2 Years

BATTERY DETAILS

• Charge Controller: PWM


• Rated solar panel amps GZ-10: 20A


• Normal input solar cell array voltage: 15-22V


• Max solar cell array voltage (output has no load): 25V


• Lowest operating voltage at solar or battery side: 8V Minimum


• Charging Characteristics:


• Start Voltage at 25°C: 3-10V


• Charge Voltage at 25°C:


• LTO battery: 14.0V


• Gel battery: 14.1V


• LiFePO4 battery: 14.4V


• Charge Voltage at 25°C: AGM battery-14.4V


• WET battery: 14.7V


• Calcium battery: 14.9V


• Equalizing Voltage at 25°C: WET or Calcium battery-15.5V


• Float Voltage at 25°C:


• Gel, AGM, WET, Calcium batteries-13.6V


• LTO and LiFePO4 batteries-13.4V


• Battery temperature compensation coefficient: -24mV/°C

SOLAR

• Rated Power: 200 Watts


• Open Circuit Voltage (Voc): 21.8V


• Maximum Power Point Voltage (Vmpp): 18.1V


• Cell Type: Monocrystalline

PORT

• High Power Port: 14-22V, up to 14A (200W max)

• Solar Input Port (High Power Port): 14-23V, up to 14A


• Fuse: 25A replaceable

GENERAL INFORMATION

• Brand: Goal Zero


• Manufacturer SKU:44220


• UPC: 847974008041


• Type: Portable Solar Panel with Charge Controller
