Elinchrom Compact ELC Pro HD 500

Push boundaries with a high-performance solution for professionals. Create your next adventure with the Elinchrom ELC Pro HD 500, the highest-performing monolight studio flash on the market today. Delivering the widest power range, fastest flash duration, and perfect color and exposure accuracy, it is the ultimate solution for demanding creative professionals with action-packed stories to tell. Thanks to a simple user interface and the Creative Suite including stroboscopic, sequence, and delay modes, you will be bringing your wildest ideas to life in no time.

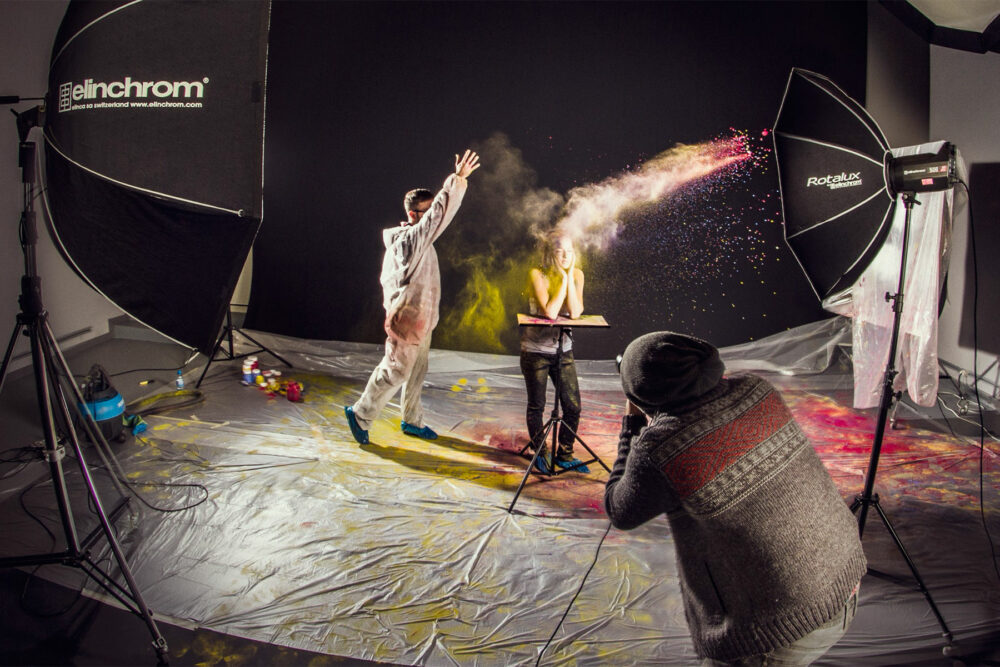

	The most professional monolight unit Are you constantly thinking about new images you want to create? Something bigger, better, and more stunning than your last one. Simple. Create your next adventure with the ELC Pro HD 500 or 1000, the most professional studio monolight unit from Elinchrom. Use flash in burst mode like Tom Bol in his BMX series, create a world of moving color like Phillipe Echaroux in The Pigments or invent your own fantastic lighting universe fast from scratch: the ELC Pro HD Dual Kits are all you need.

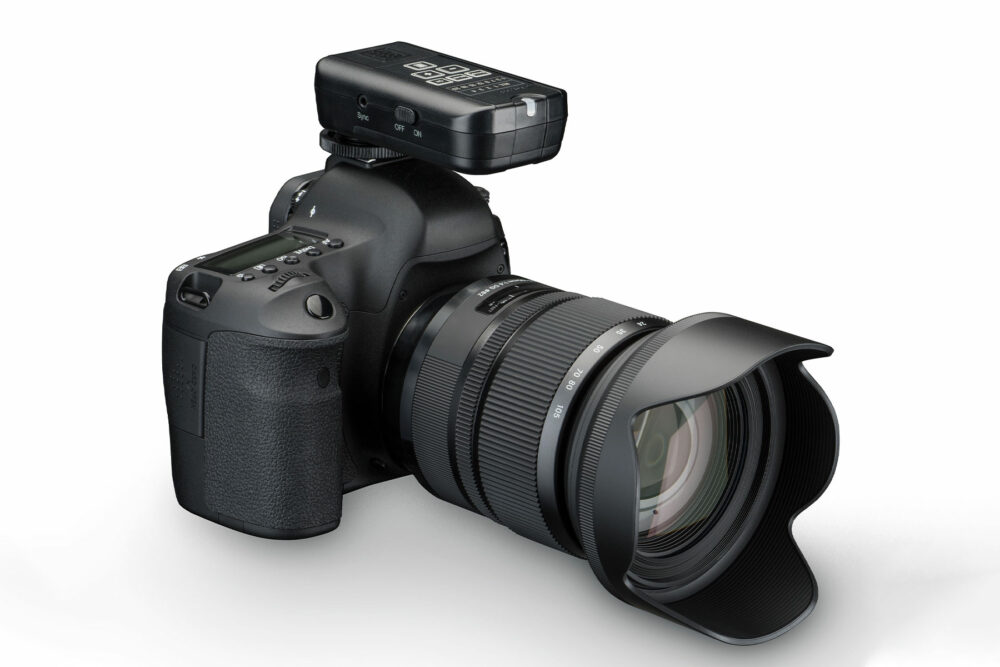

Take full control with the Elinchrom Transmitter Plus Strong and robust with extra range, the latest version of the Elinchrom Transmitter Plus lets you simply trigger and adjust flash power at up to 200 m (656 feet) away - and you can optimize reception using the swivel function. It is a must-have, now included in the To Go Set.
	Shape your next adventure with Elinchrom Light Shapers Take your next adventure to a new level. Whether you are looking for more depth, intensity, reflection or spread, you can transform your lighting to suit your needs with the full range of Elinchrom Light Shapers.

ELINCHROM COMPACT ELC PRO HD 500 FEATURES

• Empower your adventure: Choose a 500 Ws unit with no disadvantages. It has feature lightning fast recycling time so you can experiment with photo bursts to your heart content.

• Navigate with ease: The easy-to-use interface features a crystal-clear OLED display that shows the power in Elinchrom F-Stops, Watt-seconds and the flash duration at the same time. Simply change the power output or browse the menu at the touch of a button.

• Capture the impossible: Switch to Strobo Mode to capture movement in seconds, literally one movement per frame. The ELC Pro HD can deliver up multiple consistent stroboscopic flashes per second at 8Ws - it is the key to your dream shot.

• Create movement: Create incredible motion effects in delay mode. Opt for first or second curtain sync and everything in between, and predictive synchronization within a short sequence. You can set the flash sync delay between 0.001 to 10s, and the results will be stunning.

BOX INCLUDES

• Elinchrom Compact ELC Pro HD 500 flash unit

• Flash tube and modeling lamp

• Glass dome

• Sync cables

• Protective cap

• Reflector 16cm 90 degrees

• User manual and quick start guide

• Protective carrying case or packaging

ELINCHROM COMPACT ELC PRO HD 500 SPECIFICATIONS

• Flash output: 500 Ws

• Power range: 7 F-Stop

• Recycling time: 0.6 or 1.2 s

• Creative Suite: Strobo, Delay, Sequence

• Energy: 500 Ws/J

• F-Stop 1m, 100 ISO, Reflector 48°: 64.8

• Power range F-Stop: 7

• Power increments in F-Stop: Adjusted by precise multifunctional power knob in 1/10 steps

• Power range display F-Stop equivalent: 0.3 - 6.3

• Power range: 7 to 500 Ws

• Max. flash per sec. at min. power: 20

• Best flash duration t0.5 at power: 1/5000s at 3.1

• Flash duration t0.5 at min. power: 1/2940

• Flash duration t0.5 at max. power: 1/2330

• Sync socket: 3.5 mm Jack

• Power stability: ± 0.1%

• Recycling Default mode: 0.75 s

• Recycling Eco mode: 2.0 s

• Recycling time 230 V Fast mode: to 0.6 s

• Recycling time 115 V Fast mode: to 0.7 s

• Sync voltage: 5 V

• Auto power dumping: Adjusts power settings automatically

• Voltage: 90 - 260

• Length: 315 mm

• Width: 140 mm

• Height: 210 mm

• Weight: 2.35 kg

• Flashtube: S-Type, Omega plug-in, user-replaceable - 24084

• Glass dome: Transparent

• Glass dome frosted Optional: Art. N° 24917 / optional

• Umbrella fitting: Centred tube for EL-Umbrellas ø 7 mm stand bracket with extra fitting for larger umbrella shafts

• Fan cooled: Smart pro-active cooling

• Pure sine battery Converter DC/AC: Slow charge (W): 600 with halogen

• Color temperature at max. power: 5600 K

• Material: Heat and bump poof ABS plastics

• Primary color: Dark grey

• Skyport type: Integrated transceiver, 20 Freq. Channels, 4 Groups

• Skyport distance range: 100 m

• Hi-Sync / HSS: Not compatible

GENERAL INFORMATION

• Brand: Elinchrom

• Manufacturer SKU: EL20613.1

• UPC: 7630006310563
